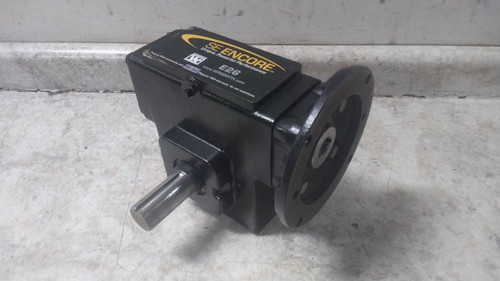

This is a Winsmith speed reducer. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Speed Reducer |
| Maximum Input Horsepower | 3 hp |
| Maximum Output Torque | 1027 in-lb |
| Overhung Load Capacity | 895 ft-lb |
| Input Connection Type | C-Face |
| Input Shaft Diameter | 7/8 in |
| Output Shaft Type | Hollow |
| Output Shaft Diameter | 1-1/4 in |
| Output Shaft Length | 3-1/8 in |
| Maximum Output Speed | 172 RPM |
| Maximum Input Speed | 1,725 RPM |
| Motor Frame Designation | 56C/140TC |
| Worm Center Distance | 2.63 in |
| Base to Shaft Center | 3.13 in |
| Gear Ratio | 10:1 |
| Gear Type | Worm |
| Number of Stages | 1 |
| Rotation | CW/CCW |
| Mounting Orientation | Any Angle |
| Lubrication | Mobil Glygoyle(R) 460 |
| Housing Material | Cast Iron |
| Housing Material Finish | Epoxy Coating System |
