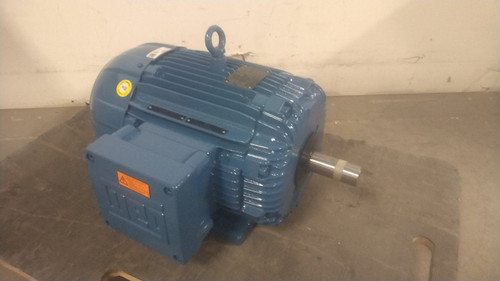

This is a Weg hazardous location motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The lifting hook is bent. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Hazardous Location Motor |
| Manufacturer Part Number | 00718XT3E213T |
| Motor Application | Hazardous Location |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| No. of Speeds | 1 |
| HP | 7-1/2 |
| Nameplate RPM | 1,765 |
| Voltage | 208-230/460VAC |
| Hz | 60 |
| Full Load Amps | 18.8/9.4 |
| Phase | Three |
| Duty Cycle | Continuous |
| Frame | 213T |
| Usable @ 208V | Yes |
| Usable @ 200V | No |
| Max. Ambient Temp. | 104 °F |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | T-Stat |
| Ins. Class | F |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Temp. Code | T4 |
| Motor Mounting Type | Rigid Base |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Hazardous Location Division | Division 1 |
| Motor Mounting Position | Horizontal |
| Length Less Shaft | 14-9/16 in |
| Motor Frame Material | Cast Iron |
| Shaft Dia. | 1-3/8 in |
| Shaft Length | 3-3/8 in |
| Motor Shaft Design | Keyed |
| Conduit Box Location | Exterior |
| Motor Bearings | Ball |
| Overall Length | 19-7/16 in |
| Weight | 245 lb |
| Nominal Efficiency | 91.7 % |
