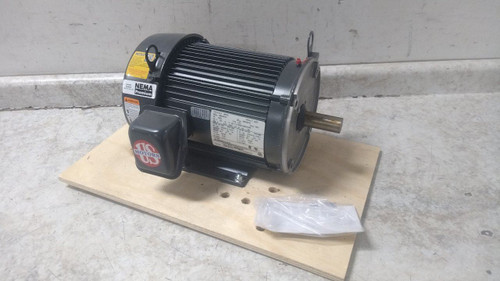

U.S. Motors U5P1DC 5 HP 3520 RPM 208-230/460VAC 3-Phase General Purpose Motor-84162564

SKU:
84162564
$254.99
$1,132.23
(You save $877.24 )

This is a U.S. Motors general purpose motor. Please refer to the technical specifications in the listing for more information.

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. The motor shaft spins when turned by hand. The eye hooks are slightly bent. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

This unit only includes what is photographed in the listing.




Technical Specs

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Fan-Cooled
No. of Speeds1
HP5
Nameplate RPM3520
Voltage208-230/460VAC
Hz60/50 Hz
Full Load Amps13.4-12.2/6.1 A
PhaseThree
Duty CycleContinuous
Frame184TC
Motor Service Factor1.25
Max. Ambient Temp.40 °C
Motor Thermal ProtectionNone
Ins. ClassF
Motor Shaft RotationCW/CCW
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal or Vertical Shaft Down
Motor Shaft DesignKeyed
Motor Frame MaterialCast Aluminum
Shaft Dia.1-1/8 in
Shaft Length2-3/4 in
Motor BearingsBall
Length Less Shaft14-1/8 in
Overall Length16-1/4 in
Nominal Efficiency89.5 %
CC NumberCC030A
