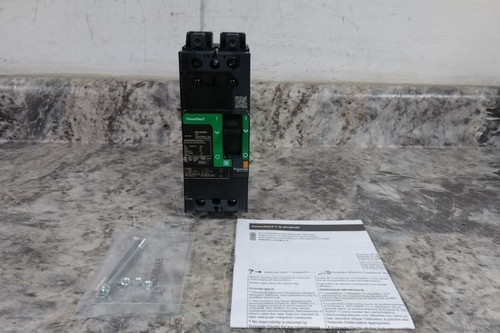

This is a Square D molded case circuit breaker. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Molded Case Circuit Breaker |
| Amps | 50 A |
| AC Voltage Rating | 525VAC |
| Max. AIR Rating | 25kA at 277/408VAC |
| Circuit Breaker Type | Standard |
| Number of Poles | 2 |
| DC Voltage Rating | Not Rated |
| Terminal Connection | Everlink Lug Both Ends |
| Trip Type | Thermal Magnetic |
| Phase | Single |
| Instantaneous Trip | Fixed |
| Frame Size | 125A/BD |
| Circuit Breaker Mounting Style | Unit Mount |
| Height | 5.39 in |
| Width | 2.13 in |
| Depth | 3.15 in |
| Min. Wire Size | 14 AWG; 6 AWG |
| Max. Wire Size | 2 AWG; 3 AWG |
| Circuit Breaker Actuator | Toggle |
| Max. Operating Temp. | 158 °F |
| Min. Operating Temp. | -13°F |
| Series | BDL |
| For Use With | Electrical Distribution Equipment; Industrial Control Panels |
