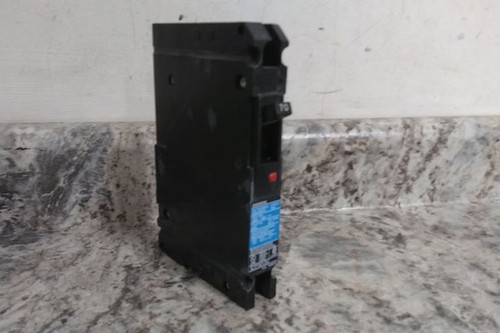

This is a Siemens molded case circuit breaker. Please refer to the technical specification sin the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
Item | Molded Case Circuit Breaker |
Amps | 70 A |
AC Voltage Rating | 120VAC |
DC Voltage Rating | 125VDC |
Max. AIR Rating | 10kA at 120V AC |
High Amp Trip Setting | 80 A |
Low Amp Trip Setting | 80 A |
Circuit Breaker Type | Standard |
Number of Poles | 1 |
Terminal Connection | Load Side Lug |
Trip Type | Thermal Magnetic |
Phase | Single |
Instantaneous Trip | Fixed |
Phase Connection | Any |
Frame Size | 125A/ED |
Circuit Breaker Mounting Style | Lug In Panelboard |
Height | 6.34 in |
Width | 1 in |
Depth | 4 in |
Min. Wire Size | 6 AWG |
Max. Wire Size | 1/0 AWG |
Circuit Breaker Actuator | Toggle |
Series | ED2 |
For Use With | SB Switchboards; Sentron Panelboards (Sold Separately) |
