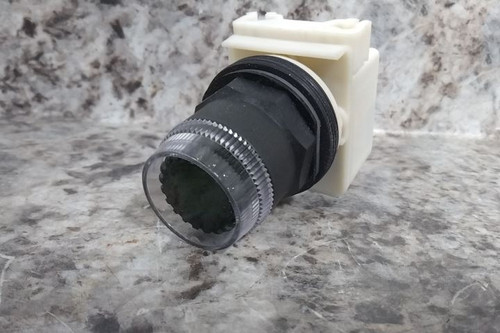

This is a Schneider Electric flush push button. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Flush Push Button |
| Manufacturer Part Number | 9001SK1L1G |
| Series | 9001SK |
| Action | Momentary |
| Bezel Material | Plastic |
| Head Material | Plastic |
| Head/Lens Color | Green |
| IP Rating | IP66 |
| Lamp Bulb Type | Incandescent |
| Lamp Module Type | Transformer |
| Lamp Voltage - Maximum | 120VAC |
| NEMA Enclosure Rating | 1; 2; 3; 3R; 4; 4X; 12; 13 |
| Number of Indicator Lights | 1 |
| Number of Operators | 1 |
| Operator Illumination | Illuminated |
| Operator Material | Plastic |
| Overall Height | 1.62 in |
| Overall Width | 2.13 in |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Dust Resistant; Impact Resistant; Vibration Resistant; Watertight |
| Terminal Connection | Screw Clamp |
