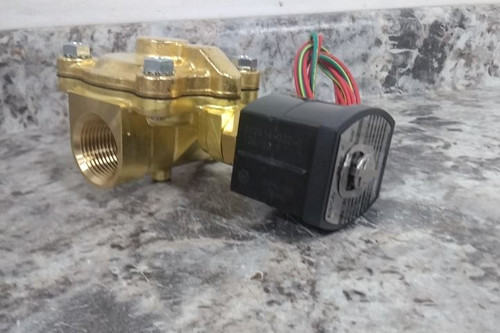

This is a Redhat solenoid valve. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Solenoid Valve |
| For Media | Air; Inert Gases; Light Oil; Water |
| Application | Air Compressors; Car Wash Equipment; Industrial Water Control; Laundry Equipment; Pumps |
| Valve Type | High Flow |
| Mounting Orientation | Vertical |
| Operation Type | Pilot Operated |
| Valve Ways | 2-Way |
| Valve Positions | 2-Position |
| Body Material | Brass |
| Seal Material | NBR |
| Nominal Pipe Size | 1 in |
| Inlet Connection Type | NPTF |
| Outlet Connection Type | NPTF |
| Voltage | 120VAC |
| Wattage | 16.1 W |
| Frequency | 60 Hz |
| Electrical Connections | 1/2" Conduit Hub |
| Coefficient of Volume (Cv) | 13 |
| Orifice Diameter | 1 in |
| Min. Operating Pressure Differential | 5 psi |
| Max. Operating Pressure Differential - Water | 150 psi |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Light Oil | 125 psi |
| Max. Operating Pressure Differential - Air/Inert Gas | 150 psi |
| Max. Fluid Temperature | 180 °F |
| Min. Ambient Temperature | 14 °F |
| Max. Ambient Temperature | 140 °F |
| Response Time | 1 sec |
| Coil Enclosure | Explosion Proof Watertight |
| Coil Insulation Class | F |
| Overall Height | 6-7/16 in |
| Overall Length | 3-3/4 in |
| Overall Width | 3-9/16 in |
| Operating Environment | Indoor; Outdoor |
| NEMA Rating | 1; 2; 3; 3S; 4; 4X |
| Manufacturer Part Number | EF8210G014 |
| Valve Configuration | Normally Open |
