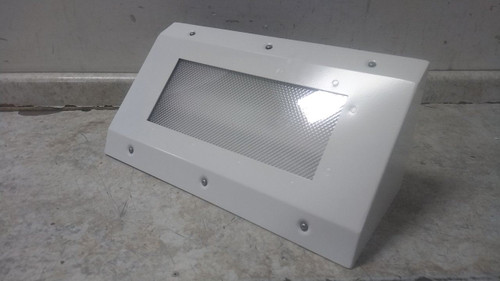

Luminaire LED CMPC12H14CRSPMIN1025W35KMVOLTALS5ESWHT Corner Mount LED Fixture-20590261

SKU:
20590261
$254.99
$1,090.91
(You save $835.92 )

This is a Luminaire LED corner mount LED fixture. Please refer to the technical specifications in the listing for more information.

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. It appears to be missing some mounting hardware. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

This unit only includes what is photographed in the listing. Made in USA.




Technical Specs

ItemCorner Mount LED Fixture
DimmableYes
Ballast Start TypeNo Ballast
Emergency Battery BackupNo
Voltage120 to 277VAC
For Bulb TypeIntegrated LED
For Max. Bulb Wattage25 W
Hazardous Location RatingNot Rated
Light TechnologyLED
Lighting CertificationUnrated
Lumens1,790 lm
Lumens per Watt71.6 lm/W
Max. Ambient Temp.50 °C
Max. Fixture Wattage25 W
Min. Ambient Temp.-20 °C
Fixture Ballast TypeNo Ballast Required
Bulb IncludedYes
Color Rendering Index82
Dimming Method0-10V
Dimming Range100% to 10%
FinishPowder Coated
Fixture TypeConfinement Corner Mount
Housing ColorWhite
Housing MaterialSteel
IP RatingNot Rated
IncludesFasteners
Lens MaterialAcrylic; Polycarbonate
Lens ShapeFlat
Lens TypeDiffuser Lens
Light ColorWhite
Light Distribution ShapeLambertain
LinkableNo
Linkable Up ToUnlinkable
Mounting StyleCorner
Mounting Hardware TypeFasteners
Nominal Length2 ft
Overall Height9 in
Overall Length21 in
Overall Width9 in
Rated Life130000 hr
Reflector TypeClosed
Sensor TypeNo Sensor
Ceiling Mount TypeCorner Mount
Housing Gauge14 ga
Lens Thickness0.375 in
Color Temperature3500K
For Use WithSamsung LM561B+ Series (Sold Separately)
Shipping Cost:
Calculated at Checkout
Weight:
35.00 LBS
Width:
12.00 (in)
Height:
24.00 (in)
Depth:
12.00 (in)
