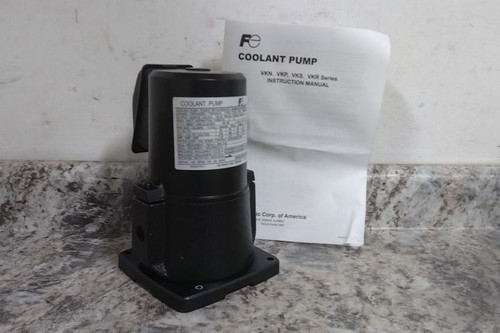

This is a Fuji Electric machine tool pump. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. It appears a hole was drilled in the mounting base. There are also some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Machine Tool Pump |
| Horsepower | 1/8 hp |
| RPM (Maximum) | 3,440 RPM |
| Nameplate Voltage | 230/460VAC |
| Frequency | 60 Hz |
| Phase | 3 |
| Maximum Feet of Head | 21 ft |
| Overall Height | 8.13 in |
| Overall Width | 8.13 in |
| Pump Housing Material | Cast Iron |
| Maximum Viscosity | 800 SUS |
| Intake and Discharge Size | 3/8 in , 3/8 in |
| Impeller Material | Bronze |
| Compatible Discharge Pipe Size | 3/8 in |
| Compatible with Media Type | Cutting Oil; Non-Flammable Liquids |
| Flow Rate @ 10 Feet of Head (Maximum, Water) | 14.4 gpm |
| Flow Rate @ 15 Feet of Head (Maximum, Water) | 10.6 gpm |
| Flow Rate @ 5 Feet of Head (Maximum, Water) | 17.1 gpm |
| Media Temperature (Maximum) | 104 °F |
| Duty Cycle | Continuous |
| Overall Length | 8.38 in |
| Priming | Self-Priming |
| Seal Material | Ceramic |
