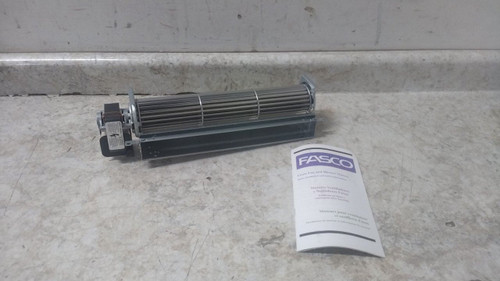

This is a Fasco OEM blower. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The fan spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | OEM Blower |
| OEM Replacement | No |
| Drive Type | Direct Drive |
| Wheel Type | Forward-Curved |
| Wheel Diameter | 2-3/8 in |
| Wheel Width | 12 in |
| Airflow @ 0.000 in SP | 131 cfm |
| Airflow @ 0.100 in SP | 130 cfm |
| Airflow @ 0.250 in SP | 120 cfm |
| Maximum Static Pressure | 1/4 in wc |
| Maximum Inlet Air Temperature | 104 °F |
| Maximum Ambient Temperature | 104 °F |
| Bearing Type | Sleeve |
| Wheel Material | Aluminum |
| Housing Material | Steel |
| Housing Material Finish | Metal |
| Nameplate Voltage | 120VAC |
| Phase | 1 |
| Frequency | 60 Hz |
| Current | 0.59 A |
| Motor Horsepower | 1/75 hp |
| Number of Speeds | 1 |
| Motor Enclosure | Open |
| Minimum Fan Speed | 3,100 RPM |
| Maximum Fan Speed | 1,400 RPM |
| Motor Speed | 3,000 RPM |
| Motor Type | Shaded Pole |
| Motor Insulation Class | H |
| Number of Discharge Positions | 1 |
| Discharge Position | Horizontal |
| Rotation | CW |
| Number of Inlets | 1 |
| Outlet Shape | Rectangular |
| Outlet Type | Non-Flanged |
| Outlet Height | 1-5/16 in |
| Outlet Width | 11-7/8 in |
| Overall Height | 3-1/2 in |
| Overall Width | 3-3/4 in |
| Overall Depth | 14-3/4 in |
| Housing Color | Natural |
| Mounting Orientation | Horizontal |
| For Air Type | Clean Air |
| Thermal Overload Protection | Yes |
| Manufacturer Part Number | A981 |
| Replacement For | 8303972; J238-8244 (Not Included) |
