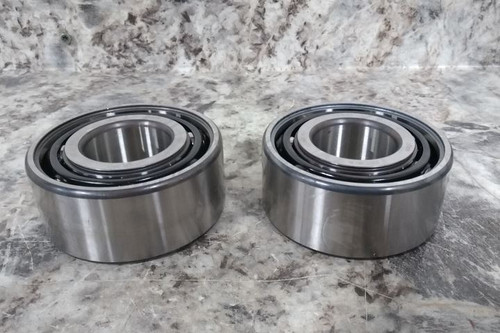

This is a package of 2 FAG Bearings angular contact ball bearings. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Angular Contact Ball Bearing |
| Number of Rows | Two |
| Bearing Type | Single Bearing |
| Matched Bearing Type | Not Matched/Single Bearing |
| Closure | Open |
| Contact Angle | 30 ° |
| Bearing Industry Number | 3307/5307 |
| Bore Diameter | 35 mm |
| Outside Diameter | 80 mm |
| Overall Width | 34.9 mm |
| Ring Material | Alloy Steel |
| Ring Material Grade | SUJ2 |
| Cage Material | Steel |
| ABEC Rating | 3 |
| Shaft Fillet Radius | 1.5 mm |
| Housing Fillet Radius | 1.5 mm |
| Maximum Speed | 9,000 RPM |
| Load Direction | Radial; Thrust |
| Dynamic Radial Load Capacity | 55,000 N |
| Static Radial Load Capacity | 36,500 N |
| Maximum Temperature | 120 °C |
| Minimum Temperature | -30 °C |
| Manufacturer Part Number | 3307-BD-XL |
