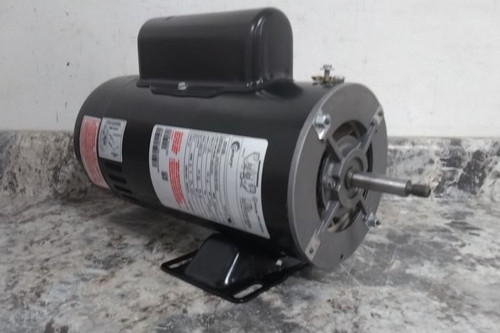

This is a Century pool and spa pump motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing.
Technical Specs
| Item | Pool and Spa Pump Motor |
| Manufacturer Part Number | SDS1202 |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| No. of Speeds | 2 |
| HP | 2; 1/4 |
| Nameplate RPM | 3,450/1,725 |
| Voltage | 230VAC |
| Hz | 60 Hz |
| Full Load Amps | 8.5/3.0 |
| Phase | Single |
| Duty Cycle | Continuous |
| Frame | 56Z |
| Usable @ 208V | No |
| Usable @ 200V | No |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Ins. Class | F |
| Max. Ambient Temp. | 50 °C |
| Motor Shaft Rotation | CCWSE |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Frame Material | Steel |
| Finish | Black |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2-3/8 in |
| Shaft Material | Stainless Steel |
| Motor Shaft Design | Threaded |
| Conduit Box Position | F3 |
| Bolt Circle Dia. | 5-3/16 in |
| Motor Bearings | Ball |
| Height | 8-9/16 in |
| Overall Length | 13-13/16 in |
| Length Less Shaft | 11-7/16 in |
| Body Dia. | 5.7 in |
| Weight | 31 lb |
