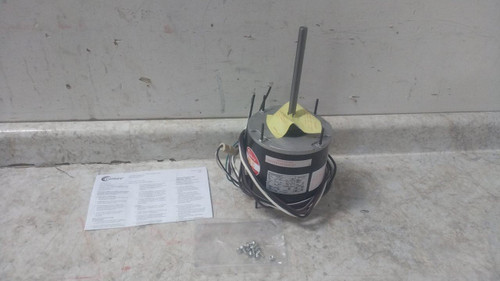

Century FE1038SU 1/3 HP 825 RPM 208-230VAC Perm Split Cap Condenser Fan Motor-46356474

SKU:
46356474
$67.99
$346.09
(You save $278.10 )

This is a Century condenser fan motor. Please refer to the technical specifications in the listing for more information.

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.

This unit only includes what is photographed in the listing.




Technical Specs

ItemCondenser Fan Motor
Manufacturer Part NumberFE1038SU
Motor ApplicationHVAC/R
Motor Sub ApplicationCondenser Fan
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignTotally Enclosed Air-Over
No. of Speeds1
HP1/3
Nameplate RPM825
Voltage208-230VAC
Hz60 Hz
Full Load Amps1.6 A
PhaseSingle
Frame48
Output Watts250 W
Usable @ 208VYes
Usable @ 200VNo
Motor Service Factor1
Motor Thermal ProtectionAuto
Ins. ClassF
Max. Ambient Temp.80 °C
Motor Shaft RotationCW/CCW
Motor Mounting TypeStud
Motor Frame MaterialSteel
Motor Mounting PositionAll Angle
Shaft Length6-1/2 in
Lead Length48 in
Shaft Dia.1/2 in
Removable BaseYes
Motor BearingsBall
Body Dia.5-5/8 in
Motor Flange TypeNon-Ventilated
Motor Shaft DesignDouble-Flat
Overall Length12-1/2 in
Length Less Shaft6 in
Weight16 lb
Mounting Stud Length1-1/16 in
Bolt Circle Dia.5-1/8 in
Stud Size#8-32
Mounting Stud Pattern3-5/8 in x 3-5/8 in
Stud Quantity4
