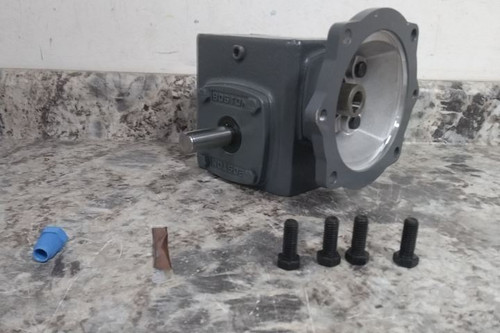

This is a Boston Gear direct drive speed reducer. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to install the unit to fully test it. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | Speed Reducer |
| Input Drive Type | Direct Drive |
| Output Shaft Type | Round |
| Motor Frame Designation | 56C |
| Gear Type | Worm |
| Worm Center Distance | 1.54 in |
| Base to Center | 1.91 in |
| Gear Ratio | 30:1 |
| Overhung Load Capacity | 300 ft-lb |
| Maximum Input Horsepower | 0.3 hp |
| Maximum Output Torque | 277 in-lb |
| Mounting Orientation | Any Angle |
| Maximum Output Speed | 58 RPM |
| Maximum Input Speed | 1,750 RPM |
