Baldor Electric EM3219T 7-1/2 HP 3450 RPM 208-230/460VAC General Purpose Motor-20079275

SKU:
20079275
$424.99
$1,636.03
(You save $1,211.04 )

This is a Baldor Electric general purpose motor. Please refer to the technical specifications in the listing for more information.

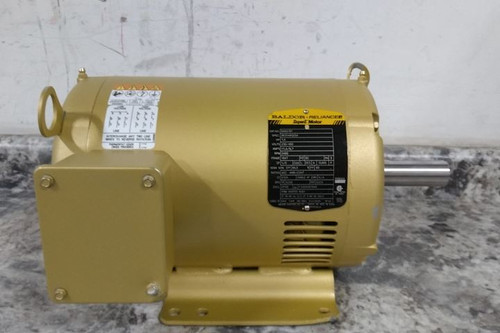

We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand but appears to be missing the key. The mounting and top hooks are bent. There are also some cosmetic scuffs and scratches throughout the unit as well as some paint chipping. Please refer to the photos for more information.

This unit only includes what is photographed in the listing. Made in USA.




Technical Specs

ItemGeneral Purpose Motor
Manufacturer Part NumberEM3219T
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
No. of Speeds1
HP7-1/2 hp
Nameplate RPM3,450
Voltage208-230/460VAC
Hz60 Hz
Full Load Amps17.2/8.6 A
PhaseThree
Duty CycleContinuous
Frame184T
Usable @ 208VYes
Usable @ 200VNo
Motor Service Factor1.15
Max. Ambient Temp.40 °C
Motor Thermal ProtectionNone
Ins. ClassF
NEMA DesignB
Motor Shaft RotationCW/CCW
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Inverter RatedNo
Motor Shaft DesignKeyed
Motor Frame MaterialSteel
Shaft Dia.1-1/8 in
Shaft Length2-3/4 in
Motor BearingsBall
Length Less Shaft12-1/4 in
Overall Length15 in
Weight91 lb
Nominal Efficiency88.5 %
CC NumberCC010A
Shipping Cost:
Calculated at Checkout
Weight:
80.00 LBS
Width:
12.00 (in)
Height:
16.00 (in)
Depth:
12.00 (in)
