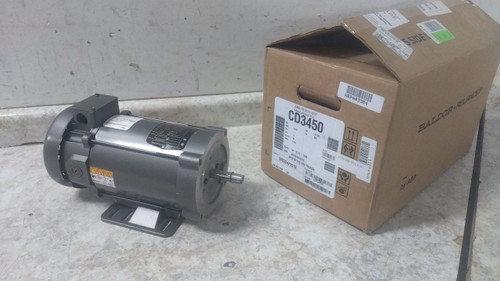

This is a Baldor Electric general purpose motor. Please refer to the technical specifications in the listing for more information.
We have inspected this item and we do not have the capability to fully test it. This unit needs to be hardwired and should be installed by a professional. The motor shaft spins when turned by hand. There are some cosmetic scuffs and scratches throughout the unit. Please refer to the photos for more information.
This unit only includes what is photographed in the listing. Made in USA.
Technical Specs
| Item | General Purpose Motor |
| Motor Design | DC |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 1/2 |
| Nameplate RPM | 1,750 |
| Voltage | 90VDC |
| Full Load Amps | 5.2 A |
| Duty Cycle | Continuous |
| Frame | 56C |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Max. Ambient Temp. | 40 °C |
| Motor Mounting Type | Rigid Base |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CCW |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1-7/8 in |
| Motor Frame Material | Steel |
| Motor Bearings | Sealed |
| Motor Shaft Design | Keyed |
| Overall Length | 14-5/16 in |
| Length Less Shaft | 12-7/16 in |
